IDEC #ABD310N-G
Click on Image to Enlarge
Product Number:
IDEC #ABD310N-G
Product SKU:
9962413
Dimensions
| Weight: | 1 Lb(s) 0 Oz |
|---|
$27.90
Select Quantity:
Product Features

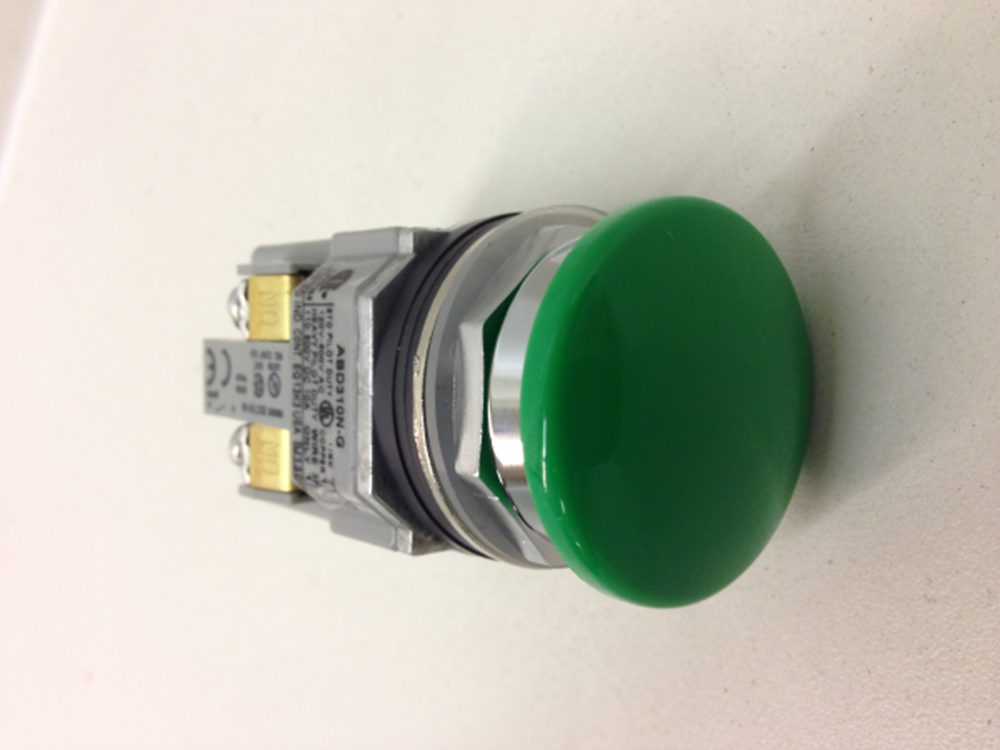

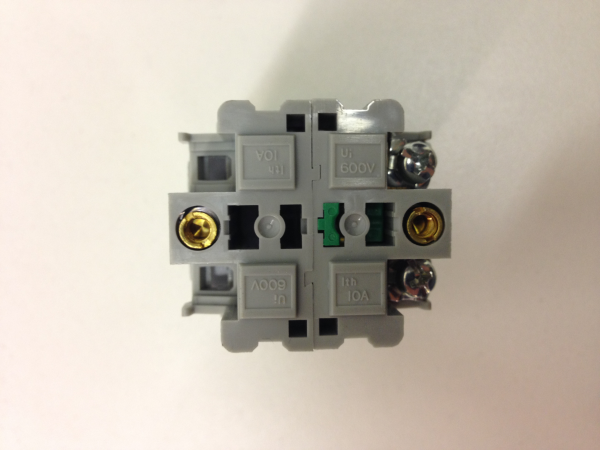

IDEC Switch Push button, Non-Illuminated: Switch Type - Pushbutton; Size - 30.0 mm; NEMA - 4X; Operating Cap - Mushroom 40mm; Cap/Lens Color - Green; Bezel/Housing - Round Metal, Chrome; Contact Mode - Momentary; Contacts - 1-NO; Contact Rating - 10A/600VAC; Terminals - Standard Screw Terminal; Enclosure Rating - NEMA 1,2,3,3R,3S,4,4X,5,12,13, IEC IP65; Additional Information - Contact Material: Silver, Mounting Size: 1.18" Dia. Hole, Operating Temperature: -25 to 55 deg C -13 to 131 deg F without freezing;
Additional: Contact Material: Silver, Mounting Size: 1.18" Dia. Hole, Operating Temperature: -25 to 55 deg C -13 to 131 deg F without freezing
