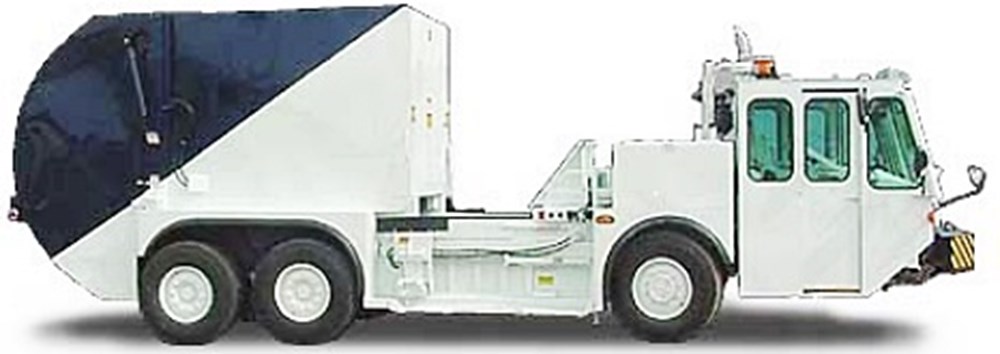

    Lodal EVO Series Trucks

    Click on Image to Enlarge

    Click for additional views:
    Lodal EVO Trucks Suppliers
    Product Number: EVO-T-28

    Please Call for Availability and Pricing

    Product Features

    Lodal EVO Trucks for Sale, Rent or Lease

    Call or Contact our Garbage Truck Sales Department for Specification Needs and Competitive Pricing.

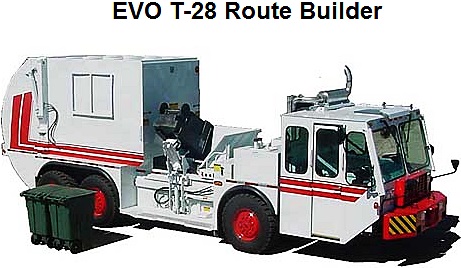

    Lodal EVO T-28:

    • Fully integrated cab, chassis and body
    • Allison automatic transmission
    • Antilock braking system on rear wheels
    • Spicer drive lines
    • Drive/Steer front axle
    • S-CAM brakes, with automatic slack adjusters on all wheels
    • Route service and holding brake system
    • Fast idle engine cut out to protect drive lines and transmission
    • Low step-in, dual stand-up drive cab
    • Dual cab fans
    • Three position roof vent
    • Air horn
    • Hopper night light
    • Battery Kill Switch
    • Left hand bang board
    • Front and rear mud flaps
    • Closed wheel openings with rubber molding

    Vehicle Weight Rating

    G.V.W. 52,000 lbs.

    Vehicle Empty Weights (approx.)

    Front axle - 16,500 lbs.
    Rear axle -- 11,000 lbs.
    Total ------- 27,500 lbs.

    Front Drive Axle & Springs

    20,000 lbs. cap. Dana SD66-1X
    axle Ratios: 6:21
    Front Springs - 12,000 lbs. cap. ea. @ pad, 4" X 52" - 10 Leaf
    Front Shock Absorbers
    Integral Pinion Mt'd 1:1 Drop box

    Independent Rear Suspension

    Tandem axle w/equalizer Beam
    Dana Wheel Ends - Non-driving

    Front & Rear Tires & Wheels

    Front : 15.0 X 22.5 18 Ply Goodyear G286 Radials
    Rear: 15.0 X 22.5 18 Ply Goodyear G286 Radials
    Pressed Disc Wheels - 12.25 Rim - 10 Stud

    Refuse Body - 25 cu. yd. cap.

    Tailgate - Top Hinged, Self Locking
    Tailgate Hyd. Cyls. - 4" D X 23.25" Stroke
    Integrated Body, Hopper & Forward Frame

    Side Loading Hopper (Midships)

    1.65 cu. yd. cap. (330 gal.) Straight Down Sides
    32" Deep X 50" Wide X 48" Long
    Loading Height - 34" Running Board 48" - from Ground
    10" Fold-up Bang Board - Left Side Hopper

    Side Running Boards

    Within width of vehicle Low Step - 9" to 11" height 12" W X 60" L Plus 17" Platform
    Skid Resistant Open Tread

    Compactor Ram & Load Ejector

    130,000 lb. Compaction Force @ 3000 P.S. I.
    2 Hyd. Cyls. - 3 Stage telescopic 5.25" D. 1st Stage, 4.25" D. 2nd Stage, 3.25" D 3rd Stage
    Compactor Ram - 50" Wide X 32" Deep with 72" Long Rigid Top Cover

    Hydraulic System (3,000 P.S.I.)

    Pump - Gear Type, 30 GPM @ 1400 RPM
    Pump Drive - Direct off Engine Crankshaft
    Direct PTO Shaft - Spicer 1350
    Hyd. Res. - 48 gal. w/Sight Gauge
    Hyd. Control valve - 2 Spool (Air Oper. Compact) Push Button hyd.
    Compaction Control & Emergency Stop Button on each side of hopper & inside cab
    Manual Hyd. Control Levers each side of Hopper
